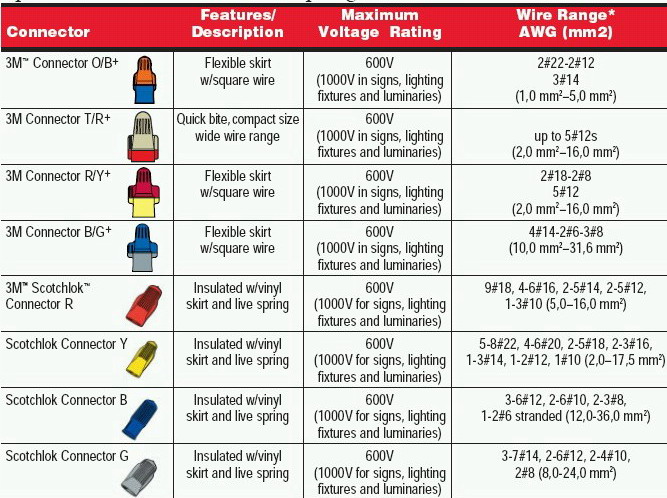

^{3M “Performance +” Spring Connector (O/B+, R/Y+, B/G+)}

* With wide wire ranges and wires feed deeper for better wire security

* Flexible skirts for better insulation on overstripped wires

* Temp. rating: 105^oC (221^oC)

* 1000 pcs/box (except R/G+ which is 500 pcs/box)

^{3M Scotchlok Electrical Spring Connector (Y, R, G, B)}

* Soft outer shell for easy on the fingers & compact design for fitting into tight places

* Able to back off for re-wiring.

* Temp. rating: 105^oC (221^oC)

* 1000 pcs/box

^{3M Direct Bury Splice kits 彈簧接頭防水配件  3M直埋式防水型彈簧接頭}

3M Direct Bury Splice Kit DBO/B-6

3M Direct Bury Splice Bulk DBO/B-6 is a premium moisture-resistant connector that is used to electrically connect and moisture seal thicker insulation wire. Consists of a 3M  Spring Connector R/Y and a high impact, UV-resistant tube prefilled with moisture-resistant grease. UL-listed for direct bury and rated for 600V. 100/box bulk

Meets requirements of: UL Standard 486D
C UL US Listed, File No. E102356
Listed for use in wet, damp, direct bury and submersible locations with UF type cable
RoHS 2002/95/EC


DBO/B-6 系列防水型彈簧接頭 為一個試管型塑膠PP housing 內灌有防水油脂 使用時將Y/R電力彈簧接頭埋入其中

Maximum Voltage Rating: 600 V
Application Temperature: 32°F to 120°F (0°C to 49°C)
Maximum Operating Temperature: 221°F (105°C)


The 3M Direct Bury Splice Kit DBO/B-6 has a 5-year shelf life from date of manufacture when stored in a humidity controlled storage (10°C/50°F to 27°C/80°F and <75% relative humidity).

^{3M Direct Bury Splice kits 彈簧接頭防水配件  3M直埋式防水型彈簧接頭}

Use part DBR/Y-6, which includes a Scotchlok)  Electrical Spring Connector, to electrically connect two
or more pre–stripped copper wire ends in a pigtail application and moisture seal the connection for direct burial.

* Sprinkler Systems / Outdoor Lighting / (Decks, driveways, lamp posts, landscape) / Septic Systems /Golf Courses / Other underground electrical wiring applications

防水型彈簧接頭DBR/Y-6配合需要在接頭的地方做防水處理的環境使用
DBR/Y-6為UL註冊，為一可直接放置於水中的接頭

DBR/Y-6系列防水型彈簧接頭 ( Direct Bury Splice Kits )

The 3M Direct Bury Splice Kit DBR/Y-6 is used to electrically connect two or more pre–stripped copper wires and moisture seal the connection for direct burial. The kit includes a 3M  Performance Plus Wire Connector R/Y+ and a high impact, UV-resistant polypropylene tube prefilled with moisture-resistant grease.

3M Direct Bury Splice Bulk DBR/Y-6 is a premium moisture-resistant connector that is used to electrically connect and moisture seal thicker insulation wire. Consists of a 3M  Spring Connector R/Y and a high impact, UV-resistant tube prefilled with moisture-resistant grease. UL-listed for direct bury and rated for 600V. 100/box bulk

DBR/Y-6系列防水型彈簧接頭 為一個試管型塑膠PP housing 內灌有防水油脂 使用時將Y/R電力彈簧接頭埋入其中

Item No.

Wire

Size

Voltage

Rating

Dimension

 mm2

Packing

pcs/set

Notes

DBY

2#18, 2#12

30

停產

DBY-6

2#18, 2#12

600

停產

DBR

7#18, 4#12, 3#10

30

停產

DBR-6

7#18, 4#12, 3#10

600

停產

DBR/Y-6

7#18, 4#12, 3#10

600

DBO/B-6

2 #18, 2#12

600

^{3M Connector Sealing Packs 3570 彈簧接頭防水膠}

3M Scotchcast Connector Sealing Packs 3570 insulate and provide protection for electrical spring connectors against dust, soil, water, and other environmental elements. It will accommodate one 3M Scotchlok Electrical Spring Connector O/B, R/Y, Y, R, G, B, 3M 212, 312 or 512.

* 10/box 100/case

3570 彈簧接頭用防水膠 ( Connector Sealing Packs )
本產品為配合Y,R,G,B電力彈簧接頭的防水用
每包防水膠使用3M＃400環氧樹脂（Epoxy）絶緣膠包裝於Unipak 的特殊包裝中
每包可配合一只彈簧接頭使用
