^{3M Novec 7000 Fluid HFE 7000 清潔溶劑}

Novec 7000

在零下120°C仍為液態

此產品不可燃

特別適用於低溫中，當做熱傳媒介及冷凍劑

不可燃、極低毒性、不會破壞臭氧層，符合RoHS

^{3M Novec 7100 Fluid HFE 7100 清潔溶劑}

Novec fluid HFE-7100 is used in a diverse range of industries. Its convenient boiling point and excellent environmental, health and safety profile make it useful in applications like heat transfer, cleaning, lubricant deposition and more.

1. Carrier Solvents for Fingerprint Formulations 指紋成形


2. Cleaning Fluids 清潔
Its boiling point (61°C) and increased solvency make Novec fluid HFE-7100 an ideal cleaning solvent in applications like vapor degreasing, wet cleaning and FOUP cleaning. Low surface tension helps it to penetrate into tight spaces found in delicate electronic equipment - providing a thorough and complete clean.  HFE-7100 is non-ozone depleting, is not a volatile organic compound (VOC) and is approved without restrictions under the US EPA's Significant New Alternatives Program (SNAP).   Depending on the type of soil to be cleaned, Novec fluid HFE-7100 can be used "neat" or in combination with other solvents. The product is compatible with most metals, plastics and elastomers


3. Deposition Solvents 溶劑
Low viscosity and low surface tension provide this fluid with surface wetting and flow properties similar to 3M  Performance Fluid PF-5060DL. In addition, Novec fluid HFE-7100 has a short atmospheric lifetime and low global warming potential (GWP). Novec fluid HFE-7100 delivers good solvency for PFPE lubricants and can dissolve high performance lubricant additives such as X-1P.

4. Heat Transfer Fluids 導熱
A wide liquid range (-135°C to 61°C) makes Novec fluid HFE-7100 well-suited to thermal management applications in a wide array of industries. In the semiconductor industry, it's ideal for automated test equipment (ATE) and wafer processing equipment requiring low temperatures.  Novec fluid HFE-7100 has a very low global warming potential (GWP) and offers reduced greenhouse gas emissions when compared to PFCs - without sacrificing performance.

^{3M Novec 7200  Fluid HFE 7200 清潔溶劑 氟化液}

Applications
‧ Cold cleaner (flex circuits, wipe solvent)
‧ Cleaning and rinsing agent for vapor degreasing
‧ Light-duty cleaning (neat)–particulates, fluorolubes, light oils, fluoropolymers

‧ Lubricant carrier Fluorocarbons Hydrocarbons Silicones

‧ Specialty solvents, dispersion medium, reaction medium, extraction solvent

‧ Spray contact cleaner

‧ CFC, HCFC, HFC and PFC replacement agent

‧ Heat Transfer Fluid

Cleaning Fluids  清潔
Its higher boiling point (76°C) and increased solvency make Novec fluid HFE-7200 an ideal cleaning solvent in applications like vapor degreasing, wet cleaning and FOUP cleaning. Its solvency allows its use in cleaning light-duty soils - like particulates, fluorolubes, light oils and fluoropolymers - and it can be paired with co-solvents to clean heavier-duty soils.
HFE-7200 is non-ozone depleting, is not a volatile organic compound (VOC) and is approved without restrictions under the US EPA's Significant New Alternatives Program (SNAP).

Deposition Solvents  溶劑
Low viscosity and low surface tension provide this fluid with surface wetting and flow properties similar to 3M  Performance Fluid PF-5060DL. Novec fluid HFE-7200 has a short atmospheric lifetime and low global warming potential (GWP). Novec fluid HFE-7200 can dissolve lubricants as well as PFPE lubes.
In addition, Novec fluid HFE-7200 offers certain unique process advantages because its higher boiling point reduces evaporative losses and its lower density means that it takes less fluid to fill a lubing machine.

Heat Transfer Fluids  導熱
A wide liquid range (-138°C to 76°C) makes Novec fluid HFE-7200 well-suited to thermal management applications in a wide array of industries. In addition, HFE-7200 fluid has a very low global warming potential (GWP) and offers reduced greenhouse gas emissions when compared to PFCs - without sacrificing performance.


vs. Novec 7100

^{3M FC-40  導熱液體 熱交換冷媒 冷卻劑 氟化液}

For heat transfer applications that require a higher boiling point than 3M  Fluorinert  Electronic Liquid FC-3283, Fluorinert liquid FC-40 (155°C boiling point) is an ideal choice. It is well-suited to a variety of heat transfer applications - especially in the electronics industry.

The high dielectric strength and wide liquid range of Fluorinert liquid FC-40 allows its use in a variety of testing applications, including electronic reliability, hermetic seal/gross leak, and thermal shock testing.

MIL. STD. Tests: Indicator Fluids (Bubble Tank)  Hot Side

Liquid Burn In & ESS (Environmental Stress Screening)

^{3M FC-43 導熱液體 熱交換冷媒 冷卻劑 氟化液}

3M  Fluorinert  Electronic Liquid FC-43

3M  Fluorinert  Electronic Liquid FC-43 is a clear, colorless, fully-fluorinated liquid. Like other Fluorinert electronic liquids, Fluorinert liquid FC-43 is thermally and chemically stable, compatible with sensitive materials, nonflammable, demonstrates low toxicity and leaves essentially no residue upon evaporation. This unique combination of properties makes Fluorinert liquid FC-43 ideal for many electronics applications, including many electronic quality and reliability tests.

With a boiling point of 174˚C, Fluorinert liquid FC-43 is ideal for use in liquid burn-in testing, environmental stress screening and some vapor phase soldering processes. It conforms to Military Specification 883 as an indicator fluid in gross leak testing and as the hot fluid for thermal shock testing.

The wide liquid range of Fluorinert liquid FC-43 makes it an ideal heat transfer fluid. Its inert nature allows for use as a reaction medium.

^{3M FC-70 3M Fluorinert Electronic Liquid FC-70 導熱液體 熱交換冷媒 冷卻劑 氟化液  沸點}  215 °C (419°F)

3M  Fluorinert  Electronic Liquid FC-70 is a clear, colorless, fully-fluorinated liquid. Like other Fluorinert electronic liquids, Fluorinert liquid FC-70 is thermally and chemically stable, compatible with sensitive materials, nonflammable, demonstrates low toxicity and leaves essentially no residue upon evaporation. This unique combination of properties makes Fluorinert liquid FC-70 ideal for many electronics applications, including vapor phase soldering and thermal management. An ideal fluid for use in condensation reflow soldering, the saturated vapor generated from boiling Fluorinert liquid FC-70 is very dense and easily contained. The elimination of oxygen allows for use of mild flux compounds, simplifying the cleaning of finished circuit boards. Other uses for Fluorinert liquid FC-70 include heat transfer, electronics testing and inert reaction media.

^{3M Fluorinert  Electronic Liquid FC-3283}  導熱液體 熱交換冷媒 冷卻劑 氟化液  沸點

3M  Fluorinert  Electronic Liquid FC-3283 is a clear, colorless, thermally stable, fully-fluorinated liquid ideal for use in many single phase heat transfer applications in the semiconductor manufacturing industry. Its liquid range (-50°C to 128°C) makes it ideal for a variety of applications such as etchers, ion implanters, testers and others. Because Fluorinert liquid FC-3283 is primarily a single compound, its composition will not shift or fractionate with time. This keeps fluid loss to a minimum and insures that transport properties will not change with time.

^{3M Fluorinert Electronic Liquid FC-770  導熱液體 熱交換冷媒 冷卻劑 氟化液}

3M Fluorinert Electronic Liquid FC-770 is a thermally stable, fully-fluorinated liquid that has ideal properties for use as a heat transfer fluid in a variety of industries. The inertness of Fluorinert liquid FC-770 permits its use as a direct contact single and
two-phase coolant in certain supercomputers and sensitive military electronics. Its high dielectric strength and electrical resistivity are ideal for applications in high voltage transformers and power electronics.

3M Fluorinert 電子化學液是透明、無色、無味、全氟化的化學液，用於直接接觸電子產品的冷卻液，不同電子化學液可以符合不同溫度的需求，運用於熱傳導的製造及測試應用

3M電子液體 FC-770 全氟化合物惰性液體  是一種氟化液體 運用於熱傳導  根據台灣所採納的GHS標準，本產品不被分類為有害物  不可燃燒

Appearance Clear, colorless
Average Molecular Weight 399
Boiling Point (1 atm) 95°C
Pour Point -127°C
Calculated Critical Temperature 511 K
Calculated Critical Pressure 2.47 x 106 pascals
Vapor Pressure 6.568 x 103 pascals
Latent Heat of Vaporization (at normal boiling point) 85.9 J/g
Liquid Density 1793 kg/m3
Kinematic Viscosity 0.79 centistokes
Absolute Viscosity 1.359 centipoise
Liquid Specific Heat 1038 J kg-1 °C-1
Liquid Thermal Conductivity 0.063 W m-1 °C-1
Coefficient of Expansion 0.00148 °C-1
Surface Tension 14.8 dynes/cm
Refractive Index 1.27
Water Solubility 14 ppmw
Solubility in Water 1.3 ppmw

3M電子液體 FC-770    Heat Transfer Fluid


Applications
In the semiconductor manufacturing industry, its wide liquid range makes Fluorinert liquid FC-770 suited for cooling ion implanters, dry etchers and CVD machines. Its low pour point also permits its use in thermal shock and test equipment.

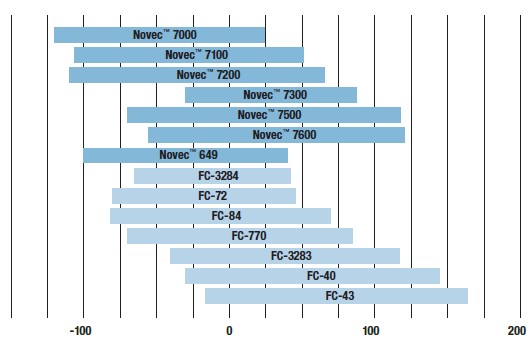

Recommended Operating Temp.

Degree C

^{3M FC-3283}

3M  Fluorinert Electronic Liquid FC-3283 is a clear, colorless, thermally stable, fully-fluorinated liquid ideal for use in many single phase heat transfer applications in the semiconductor manufacturing industry. Its liquid range (-50°C to 128°C) makes it ideal for a variety of applications such as etchers, ion implanters, testers and others. Because Fluorinert liquid FC-3283 is primarily a single compound, its composition will not shift or fractionate with time. This keeps fluid loss to a minimum and insures that transport properties will not change with time.

FC-87

FC-72

FC-84

FC-77

FC-3255

FC-3283

FC-40

FC-43

FC-70

FC-5312

Average Molecular Weight

290

340

388

415

438

21

650

670

820

820

Typical Boiling Point, °C

30

56

80

97

103

128

165

175

215

215

Pour Point, °C

-101

-90

-95

-95

-30

-50

-50

-40

-25

-25

Density, g/cm3

1.63

1.68

1.73

1.78

1.77

1.82

1.87

1.88

1.94

1.93

Density, -54°C g/cm3

1.84

1.90

1.93

1.97

■

■

■

■

■

■

Kinematic Viscosity, cs

0.4

0.4

0.55

0.8

0.71

0.75

2.2

2.8

14.0

12.6

Kinematic Viscosity, -54°C cs

1.1

1.9

4.0

6.9

■

■

■

■

■

■

Vapor Pressure, torr

610

232

79

42

31

11

3

1.3

<0.1

<0.1

Specific Heat, cal/g - °C

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

Heat of Vaporization @ Boiling Point, cal/g

24

22

19

20

22

18

17

17

16

16

Thermal Conductivity, watts/(cm2) (°C/cm)

0.00056

0.00057

0.00060*

0.00063*

0.00064

0.00066*

0.00066*

0.00066

0.00070*

0.00070*

Coefficient of Expansion cm3/(cm3)(°C)

0.0016

0.0016

0.0015

0.0014

0.0014

0.0013

0.0012

0.0012

0.0010

0.0010

9.5

12

13

15

15

16

16

16

18

18

Refractive Index

1.238

1.251

1.261

1.280

1.270

1.281

1.290

1.291

1.303

1.303

Dielectric Strength, KV(2.54 mm gap)

42

38

42

40

40

43

46

42

40

40

Dielectric Constant, (1KHz)

1.72

1.76

1.81*

1.86

1.90

1.89

1.89

1.90

1.98

1.98

Dissipation Factor, (1KHz)

<0.0005

<0.0003

<0.0003*

<0.0003

N/A

<0.0003*

<0.0003

<0.0001

<0.0001

<0.0001

5.6x1015

1.0x1015

1.0x1015

1.9x1015

N/A

5.0x1015 *

4.0x1015

3.4x1015

2.3x1015

2.3x1015

7

10

11*

13

11

7*

7

7

8

8

Solubility of Air ml gas/100 ml liquid

54

48

43*

41

N/A

30*

27

26

22

22

^{3M Novec EGC-1700電子級塗佈液 低表面能 薄膜塗料 电子氟化液}

3M Novec 低表面能薄膜塗料 EGC-1700

應用: 數據存儲 hard disk / 防靜摩擦－ 磁阻磁頭 / 防腐蝕 / 防遷移－ 磁盤驅動器錠式馬達 / 印刷電路板  / 工業控制
微馬達 / 球軸承 / 汽車 / 航海業

3M Novec 低表面能薄膜塗料 EGC-1700 可用于印刷線路板的保護塗層。使用後表面留有一層非常薄 的透明膜，起到極佳的防潮，防粘效果，對於各種低表面張力液體，　

EGC-1700 可應用於塑膠、銅、鋁、鋼、錫和玻璃，很好的材料相容性
EGC-1700 可保護易受水汽、濃縮液、灰塵、油脂、溶劑和腐蝕性氣體侵蝕的印刷電路板 位於磁盤驅動器的潤滑劑和污物中的磁阻磁頭 許多需防止水汽等侵蝕的敏感電子元件

EGC-1700　電子級塗佈液

做為印刷電路版的保護層，隔離潮濕及腐蝕性的化學環境，保護敏感的電子零件。

可適用於防潮、抗沾黏和抗腐蝕。

EGC-1700 的塗佈非常簡單，常溫之下快速乾燥，不需要烘烤，提供合身且超薄，肉眼看不見的輕薄塗佈，良好的潑水特性，可以抵抗多數的液體，如：潤滑油、矽油、光阻劑….等半導體製程，常用的液體環境

^{3M Novec EGC-1700　低表面能　電子級塗佈液　薄膜塗料 电子氟化液}

3M Novec 低表面能薄膜塗料 EGC-1700

應用: 數據存儲 hard disk / 防靜摩擦－ 磁阻磁頭 / 防腐蝕 / 防遷移－ 磁盤驅動器錠式馬達 / 印刷電路板  / 工業控制
微馬達 / 球軸承 / 汽車 / 航海業

3M Novec 低表面能薄膜塗料 EGC-1700 可用于印刷線路板的保護塗層。使用後表面留有一層非常薄 的透明膜，起到極佳的防潮，防粘效果，對於各種低表面張力液體，　

EGC-1700 可應用於塑膠、銅、鋁、鋼、錫和玻璃，很好的材料相容性
EGC-1700 可保護易受水汽、濃縮液、灰塵、油脂、溶劑和腐蝕性氣體侵蝕的印刷電路板 位於磁盤驅動器的潤滑劑和污物中的磁阻磁頭 許多需防止水汽等侵蝕的敏感電子元件

EGC-1700　電子級塗佈液

做為印刷電路版的保護層，隔離潮濕及腐蝕性的化學環境，保護敏感的電子零件。

可適用於防潮、抗沾黏和抗腐蝕。

EGC-1700 的塗佈非常簡單，常溫之下快速乾燥，不需要烘烤，提供合身且超薄，肉眼看不見的輕薄塗佈，良好的潑水特性，可以抵抗多數的液體，如：潤滑油、矽油、光阻劑….等半導體製程，常用的液體環境

^{3M Novec EGC-1720電子級塗佈液 低表面能 薄膜塗料 电子氟化液}

3M Novec 低表面能薄膜塗料 EGC-1720

Novec EGC-1720隱形抗污膜，能有效的附著在玻璃表面，可適用於各種電子產品，如 : 觸控面板，抗反射塗佈(AR)面板、光學薄膜、各種電子零件、MEMS、半導體元件或手機零件。 雖然厚度只有 50-100埃(A)，但具有極佳的抗污、抗沾黏和防潮的效果。

Novec EGC-1700

電子級塗佈液

EGC-1700電子級塗佈液，提供了印刷電路版方便及快速的保護層，能有效的隔離潮濕及腐蝕性的化學環境，對於敏感的電子零件，達到最好的保護。可適用於硬碟業、微機電系統(MEMS)、LCD和印刷電路版產業，達到防潮、抗沾黏和抗腐蝕的特性。 EGC-1700 的塗佈非常簡單，常溫之下快速乾燥，不需要烘烤，即能對電子零件及印刷電路板的連接介面，提供合身且超薄，肉眼看不見的輕薄塗佈，良好的潑水特性，可以抵抗多數的液體，如：潤滑油、矽油、光阻劑….等半導體製程，常用的液體環境。

Novec EGC-1720

電子級塗佈液

Novec  EGC-1720隱形抗污膜，能有效的附著在玻璃表面，可適用於各種電子產品，如 : 觸控面板，抗反射塗佈(AR)面板、光學薄膜、各種電子零件、MEMS、半導體元件或手機零件。 雖然厚度只有 50-100埃(A)，但具有極佳的抗污、抗沾黏和防潮的效果。

Novec EGC-2702

電子級塗佈液

EGC-2702是透明的塗佈液、低黏稠度和低表面張力，它是以氫氟醚溶劑做為載體。需運用在乾淨或乾燥的表面，如：銅、環氧樹脂板材、鋁、陶磁、鋼、錫或玻璃的材質時，EGC-2702電子級塗佈液可形成透明的保護膜，達到防潮、抗沾黏和抗腐蝕的效果。

Novec EGC-4880

電子級塗佈液

EGC-4880電子級塗佈液可形成透明的保護膜，氧化高分子溶在烷氧基矽烷/酒精溶劑。需運用於乾淨的表面，如：玻璃、陶磁、鋁和鋼的材質上，此保護膜可達到防刮、防潮、抗沾黏和抗腐蝕的效果。

^{3M Novec Contact Cleaner 電子接點清潔劑}

3M Novec 電子接點清潔劑非常有效且溫和的方式去除氟素油污,灰塵、油脂, 矽膠以及各種的微粒物質。

可清潔各類電子、電器接點之氧化物，以降低傳輸阻抗，中性不帶電，並且完全不留殘漬，是一個幾乎任何環境都能適用的絕佳清潔噴霧罐。去污、去氧化物使接點、電路回復正常.

1. 清潔電腦,網路,光纖連接器 (不需要關機) 2.清潔半導體製成設備. 3 電子和通訊系統:手機、電腦、影音設備及各種電子電器產品零組件、電路板、通訊器材的快速接頭、電話線的連接、繼電器等等。4.自動控制系統:各種空壓、油壓、電子自動開關控制器等 5.電機設備:馬達、天車、變壓器、發電機、各種產業機械電力、輸送配電盤、開關箱。 Made in USA. 11oz / 312 g   易燃液體

3M  Novec  Contact Cleaner effectively removes light oils, greases, silicones, dust and particulates from sensitive electrical equipment, including connectors, printed circuit boards, electro-mechanical devices, scales, contacts, relays, switches, conncetors instrumentation and circuit breakers. Novec Contact Cleaner is compatible with plastics and other materials of construction.

•Fast drying, low odor •Excellent plastics compatibility •Low toxicity •Non-flammable •No rinsing and no residues •Non-chlorinated
•Non-corrosive, non-conductive – ideal for electrical or energized components
•11oz / 312 g   Made in USA/ Industry Grade

• Removes particulates, oils, light grease, silicones, dust and other soils from connector end faces
• Safe for plastics and metals

^{3M Novec Electronic Degreaser 電子清潔劑 - 油漬}

3M Novec 電子清潔劑是絕佳的油污清潔溶劑, 無閃火點, 快乾, 低毒,能夠去除油漬、油脂、潤滑油,完全不留殘漬, 可清潔各類電子、電器設備. 會傷害少部份塑膠(ABS, PS, 壓克力, PC, 聚碳酸酯)

1.自動控制系統: 各種空壓、油壓、電子自動開關控制器等 2.電機設備:馬達、天車、變壓器、發電機、各種產業機械電力、輸送配電盤、開關箱。3. 清潔半導體製成設備. Made in USA. 12oz / 340 g    易燃液體

3M Novec Electronic Degreaser is ideal for cleaning heavy oils, greases and handling soils from electronic and electrical equipment. This heavy-duty cleaner is suitable for use on metals and many plastics, with the exception of acrylics, polycarbonates, ABS and PS. ‧ Non-corrosive ‧ Non-flammable ‧ Low toxicity ‧ Fast drying, no residue ‧ Low odor

Novec Electronic Degreaser is based on a non-flammable high performance proprietary hydrofluoroether formulation that is non-ozone depleting and does not contain any Hydrochlorofluorocarbons (HCFCs), Hydrofluorocarbons (HFCs), Hazardous Air Pollutants
(HAPs) or n-propyl bromide (nPB). This results in an affordable, industrial-strength cleaner/degreaser, providing a wide margin of workplace safety and a favorable environmental profile.  Made in USA.  Industry Grade  12oz / 340 g

^{3M Novec Flux Remover 助銲劑清潔劑 - 銲油}

Novec Flux Remover 助銲劑清潔劑是絕佳的助銲劑銲, 油清潔溶劑, 無閃火點, 快乾, 低毒. 能夠去除油漬、油脂, 完全不留殘漬, 可清潔各類電子、電器設備. 會傷害少部份塑膠(ABS, PS, 壓克力, PC, 聚碳酸酯)  Made in USA. 12oz / 340 g    易燃液體

3M Novec Electronic Degreaser removes a wide variety of solder fluxes used in electronics manufacturing and repair – including rosin-based and many no-clean and lead-free fluxes. It is also effective in removing hydrocarbon, silicone and fluorochemical oils and greases encountered in the maintenance of electronic devices such as electric motors, generators, precision devices and other electromechanical or sensitive equipment. Novec Flux Remover evaporates quickly, and leaves no residue. It is non-corrosive and compatible with most plastics, with the exception of acrylics, polycarbonates, ABS and PS.

 ‧ Non-corrosive ‧ Non-flammable ‧ Low toxicity ‧ Fast drying, no residue ‧ Low odor

Made in USA.  Industry Grade  12oz / 340 g
